Case study · Construction · Computer vision & 3D reconstruction
AI Construction Progress Monitoring on Live Building Sites
A multi-site construction group ran construction progress monitoring by hand, with walkthroughs & spreadsheets, so schedule slips stayed hidden until billing. Brainy Neurals built a 4D monitoring system that uses computer vision on 360-degree video to check every building element against the BIM model. One site engineer walks each floor with a camera on a pole, & floor-wise reports replace the old spreadsheet in progress meetings. The group reports 40 to 60 percent less supervision effort, with schedule deviations now flagged weeks earlier than before.
40 to 60%
Less supervision effort
Weeks earlier
Schedule slips flagged
Every element
Progress recorded as proof
Published September 2026 · Updated October 2026
The engagement at a glance
Construction progress monitoring for this group moved from manual walkthroughs to element-level status in one full system build.
What problem did this solve?
A construction group running multiple concurrent sites tracked progress through manual walkthroughs & spreadsheets. Schedule deviations stayed invisible until billing, when rework was already expensive.
What did Brainy Neurals build?
Brainy Neurals built a 4D progress monitoring system for a multi-site construction group. It rebuilds each floor in 3D from 360-degree video & matches every detected element to its exact BIM object.
What changed after it went live?
The construction group reports 40 to 60 percent less manual supervision effort, with deviations flagged weeks earlier. Progress is now recorded element by element as digital proof.
Who else could use this?
Any operator building large physical assets against a design model can use this pattern. Rail, industrial plants, shipbuilding, data center fit-outs & heavy civil infrastructure all qualify.
| Fact | Detail |
|---|---|
| Industry | Construction |
| Sub-vertical | Commercial building projects |
| Client | Multi-site construction group |
| Engagement | Full system build |
| Timeline | Months to first deployment |
| Capabilities | Computer vision, 3D reconstruction & BIM |
| Delivery model | Standardized multi-site rollout |

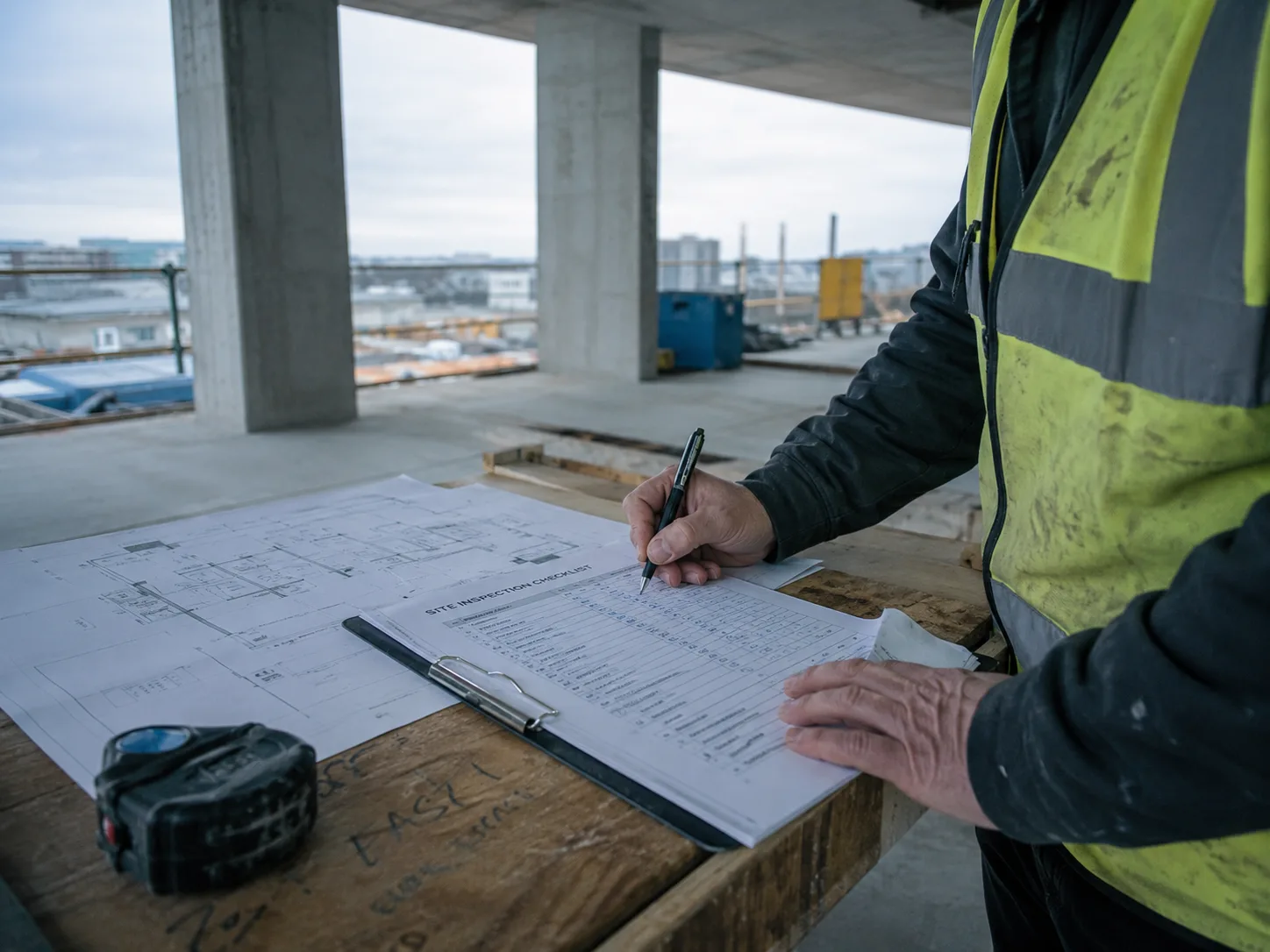

Why did manual progress tracking keep failing?
Construction progress monitoring on the group’s sites happened on foot, one walkthrough at a time, across several tower builds running at once. Engineers walked each floor & judged completion by eye. Then they typed a percentage into a spreadsheet.
Nothing tied what stood on the slab to the building information model, or BIM, that the project was contracted against. Brainy Neurals was brought in to close that gap with computer vision development built for live construction sites.
Where the manual process broke
- The weekly report & the floor disagreed, & both numbers were honest opinions.
- The deviation surfaced at billing, when the claim & the site disagreed.
- The stakeholder update was one engineer’s judgment, retyped each week, with nothing behind the percentage.
- The rework bill grew quietly, because a deviation found at billing is months old by then.
Rework costs are large enough to change a project’s margin. One study of 359 projects put direct rework costs near 5 percent of total construction cost[1].
The breaking moment was always the same billing meeting, with two versions of the truth & no record to settle it.
Why do progress photo tools fall short?
Progress photo tools fall short when they never tie a photo to a model element. Each cheaper approach below works up to a point, then stops.
| Approach | What it gets right | Where it stops | Who it still suits |
|---|---|---|---|
| More site walks | Cheap & familiar | Subjective, & photos never tie to model elements | One small project |
| Fixed timelapse cameras | A continuous record | Sees facades instead of interiors, with nothing per element | Exterior milestones |
| Laser scanning surveys | Survey-grade geometry | Needs a crew & a booking, so cadence stays low | Final as-built handover |
| Drone photogrammetry | Fast exterior coverage | Cannot fly interiors routinely | Earthworks & shell |
| 360-degree video matched to BIM | Interiors, one operator & element status | Needs a design model to compare against | Multi-site builders working to BIM |
Researchers matched site images to individual 4D BIM elements as early as 2015[2]. Photo tools that skip that element link stay documentation instead of measurement.
How we designed the monitoring system
We designed the 4D progress monitoring system around one person, one camera & a model that never moves. Brainy Neurals built it for a construction group running multiple concurrent commercial sites.
One person walks each floor with a consumer 360-degree camera on a pole. Software rebuilds that walk in 3D & registers it to the BIM coordinate frame. Then it works out which designed elements exist.
Each finished capture becomes a timestamped as-built snapshot of that floor. The camera moves through the building but the model never moves, & that fixed frame is what makes progress measurable. The sequence of snapshots is the fourth dimension, the building against its plan, over time.
The camera moves through the building but the model never moves, & that fixed frame is what makes progress measurable.
Under the hood this is video analytics at full building scale, with hours of footage in & element statuses out.
Capture happens on site, reconstruction & matching run in the processing pipeline, then reports reach every stakeholder.
Match by element identity first
Every BIM object carries a stable identifier, so the system reports status per element instead of per photo. We rejected geometry-only comparison, because it proves something exists without saying which contracted item it is.
Consumer capture over survey-grade scanning
Routine laser scanning needs a crew & a booking, so we ruled it out, since a measurement nobody repeats can’t serve as monitoring.
The technology stack we used
The technology stack had one test for every layer, which was whether a site team could run it without us standing beside them.
The stack below is the version that passed that test on every site. It favors capture anyone can operate & reconstruction that tolerates live sites. Outputs read like engineering documents, & the wider toolbox is mapped across our AI development services.
| Layer | What we used | Why | What we ruled out |
|---|---|---|---|
| Capture | A consumer 360-degree camera on a pole | One operator covers a floor in one pass | Survey-grade laser scanners |
| Reconstruction | Proprietary 3D AI engine combining spatial mapping & vision pipelines | Solid geometry from ordinary walking video | Still-photo photogrammetry runs |
| Registration | Automated alignment to the BIM coordinate frame | Every capture lands on one fixed frame | Manual alignment per visit |
| Model layer | A BIM parsing engine reading the element tree | Stable identifiers, in the open IFC standard | Flat geometry exports |
| Detection | Vision models tuned to structural classes | Walls, beams, columns & slabs in the rebuild | Generic scene segmentation |
| Progress engine | Element status & deviation logic against schedule | Built, partial or not started, with a date | Percent-complete guesswork |
| Delivery | Floor-wise dashboards & PDF engineering reports | Rolls element to floor to building to site | Raw 3D viewers |
How does 4D progress monitoring work?
4D progress monitoring works by turning one floor walk into a status for every element. Follow one Tuesday-morning capture all the way from the slab to the finished report.
Coda · The fourth dimension
One walkthrough becomes element-level status in six steps, with deviations flagged against the schedule.
- A site engineer walks the floor with a 360-degree camera, covering every room in one continuous pass.
- The raw footage is processed by our AI engine to generate a dense, accurate 3D reconstruction of the floor.
- The reconstruction registers to the BIM coordinate frame, so every point lands where the model says space exists.
- Detection models find the structural elements in the rebuild, which are walls, beams, columns & slabs.
- Each detected element matches its exact BIM object by identifier, then updates its status for that capture.
- Dashboards & PDF reports roll element status up from floor to building to site, with schedule deviations flagged.
Any engineer can narrate this back to their own team, & that is deliberate.
What nearly stopped the build?
Three problems nearly stopped the build & ate most of the engineering time, yet none of them shows up in a demo.
Drift
Long interior walks pile up small reconstruction errors, corridor by corridor, until the rebuild refuses to sit on the model.
Twin floors
Concrete towers repeat, so floor eleven looks exactly like floor twelve & progress gets filed against the wrong level.

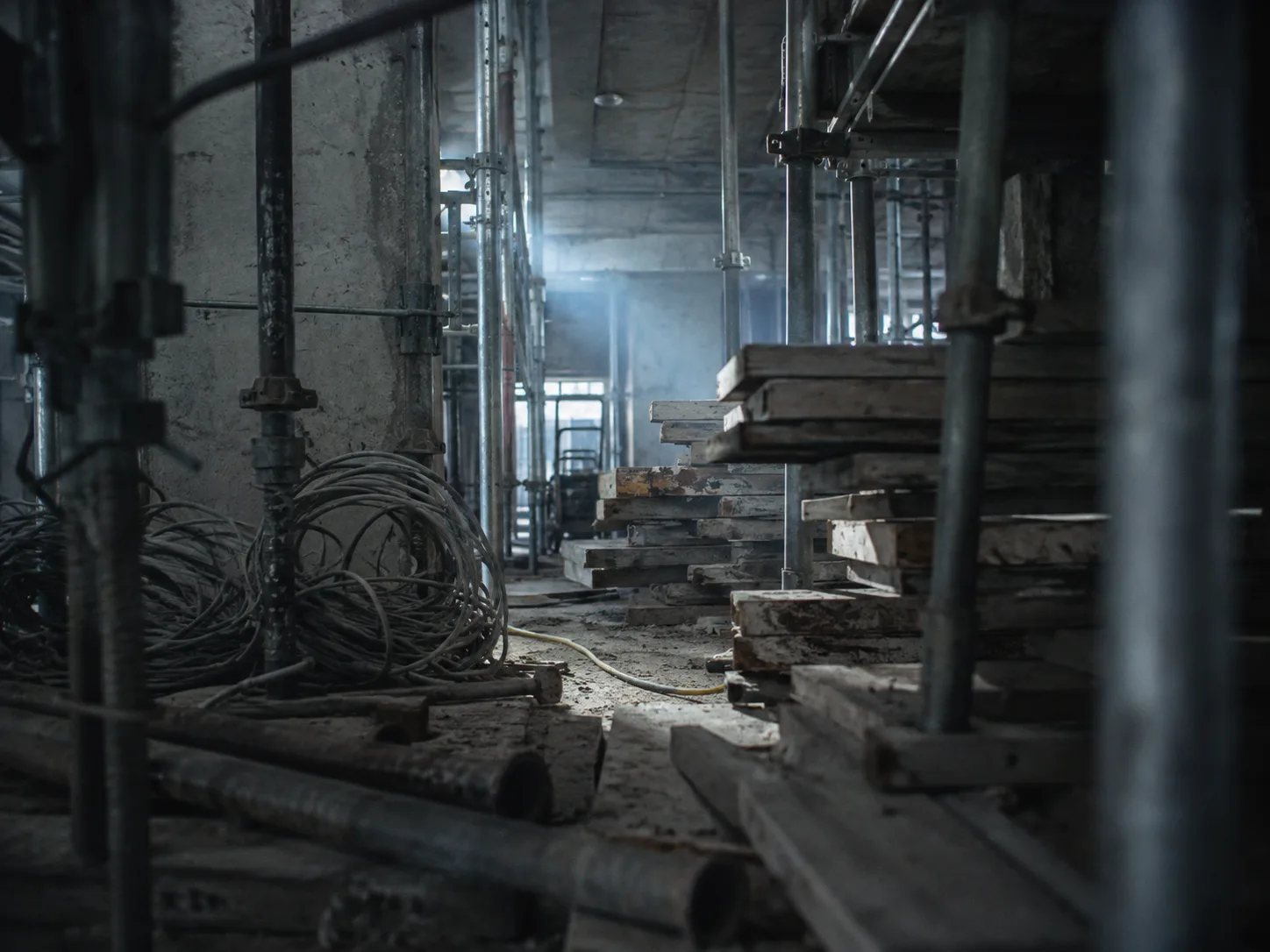

Occlusion
Scaffolding & stacked boards hid finished work, as did parked lifts, & a hidden wall reads as an unbuilt wall.
Reviews of sensing-based progress monitoring name the scanning environment itself as a deciding factor in data quality[3].
Concrete dust got into everything too, from lens housings to laptop fans & even the coffee.
Problems in this class are why builders extend the bench with specialist engineers instead of starting from zero.
How did we fix each problem?
We fixed each problem with one matching change, & none of the three fixes needed exotic engineering.
Drift got anchored registration
The rebuild snaps to fixed reference geometry first, coarse then fine, so error resets before it compounds. Long walks now land on the model instead of near it.
Twin floors got model-aware matching
The BIM already knows which elements can exist on which level, so the design itself tells lookalike floors apart & the model becomes the map.
Occlusion got evidence thresholds
An element changes status only when repeated captures agree, so a parked pallet can’t un-build a wall. Statuses move slower & get argued with less.
Fixed anchors reset reconstruction drift before it can compound across a floor.
We shipped it in staged releases against live sites, the pattern our engagement models describe. All three fixes separate a demo from a system a contractor bills against.
What changed after go-live?
After go-live, the construction group reports manual supervision effort down 40 to 60 percent across the sites where the system runs. The figure is the client’s own measurement, & we print it exactly as reported.
| Outcome | Detail |
|---|---|
| Where the hours went | The recovered supervision hours went back into coordination & quality work instead of more walking. |
| Timing moved further than hours | Slippage that used to surface at billing now flags weeks earlier. At that point it’s still a schedule conversation instead of a claims fight. |
| Disputes changed shape | A progress claim now arrives with an element-level record attached, so both sides argue against the same evidence. |
| What we have not measured | We haven’t published a rework figure, though the client reports the direction is down. We won’t print a number we haven’t measured. |
The client reports supervision effort down 40 to 60 percent since rollout.
Still tracking site progress by hand?
Tell us what your teams walk & type each week, & we’ll say whether it can be measured against your model. You can also check where your AI readiness stands first.

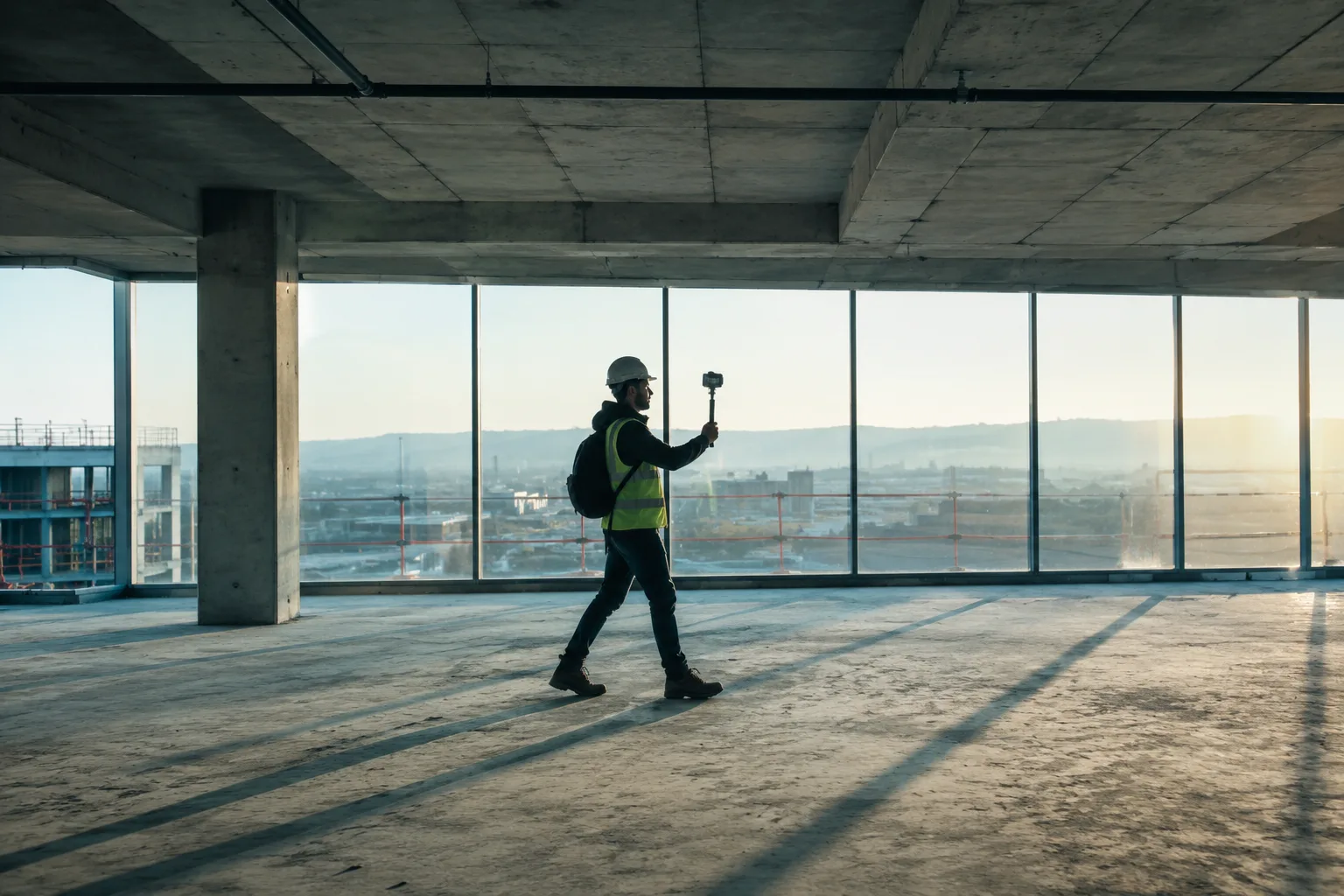

What is running today
Today the monitoring system runs in production across multiple concurrent sites, on a standardized rollout the group repeats for each new tower.
A site engineer walks each floor with the camera as part of the normal routine. Reconstructions land in the pipeline & dashboards update floor by floor. The PDF reports go straight into progress meetings.
Coverage has grown since handover without Brainy Neurals engineers on site, which is the point. It is also most of what teams exploring AI in construction now ask us about.
What would we do differently?
Four lessons came out of the site work that we would apply earlier next time, & one of them still stings.
Write the walk protocol first
We under-scoped the walk protocol, so early captures varied from engineer to engineer. The geometry was fine but consistency wasn’t, & one written page fixed more than any model change.
Bind to element identity early
Matching stable BIM identifiers from day one made every later feature cheap, including dashboards & dispute records.
Report the way sites argue
Floor-wise PDF reports got adopted because they match how billing meetings actually run.
Show the evidence next to the status
Every published status links back to the capture that produced it. A progress number nobody can check is a progress number nobody will trust.
A progress number nobody can check is a progress number nobody will trust.
Where else does this pattern fit?
The pattern fits wherever work is contracted against a model & billed against progress.
As-built verification checks the physical state of an asset against its design model, using 3D reconstruction from ordinary video.
The same capture & compare pattern applies to plant construction against a dense design model.
| Industry | The same problem | What changes in the build |
|---|---|---|
| Rail & metro | Stations & viaducts built over years against one design | Linear referencing along the alignment |
| Industrial plants | Pipe racks & steelwork installed against a dense model | Smaller elements & denser detection classes |
| Data center fit-outs | Repetitive halls built fast on tight schedules | A services-heavy element vocabulary |
| Shipbuilding | Hull blocks assembled to CAD in covered yards | Steel sections with no daylight assumptions |
| Heavy civil | Bridgeworks progress claimed monthly against drawings | Volumes & chainage over elements |
| Facility handover | As-built condition proven at practical completion | Snag lists tied to elements |
The nearest neighbors are plant construction in manufacturing & station work in rail, & both keep asking. Porting takes a new element vocabulary & a fresh registration target, while the pipeline itself stays the same.
Construction progress monitoring questions buyers ask
Do we need a complete BIM model to start?
You don’t need a complete model, because the system needs the structural model only for the elements it will track. A partial model limits coverage instead of feasibility, & coverage grows as the model does.
How often does someone have to walk the site?
Walk cadence for construction progress monitoring is your call, & the system was built so one person handles it inside a normal routine. Vendors across this market typically report weekly or biweekly walks as the working rhythm. The tighter the cadence, the earlier schedule deviations flag.
How long does AI development take for a build like this?
Expect months for a first production deployment, because every stage from registration to reporting must survive a live site. Repeat rollouts run much faster, & this build now extends to new sites on a standardized checklist.
What does AI development cost for a build like this?
Scope drives the cost, from the number of sites & element classes tracked to how deep the schedule integration goes. Brainy Neurals prices it as a fixed build with a pilot floor first, so the spend has an exit ramp. The honest first step is an AI readiness assessment of your model & capture maturity.
Can the output hold up in a billing dispute?
A billing dispute is where the system earns its keep. Every element status links to the timestamped capture that produced it, so a claim arrives with evidence attached. Teams across this market use the same capture records to validate monthly payment applications.
What happens when scaffolding hides an element?
The system waits for repeat captures before it changes anything. An element changes status only when repeated captures agree, so temporary blockage reads as no change instead of regression. Persistent occlusions get flagged for a human review pass instead of a silent guess.
