Edge AI Overhead Wire Measurement on Moving Rail Vehicles

A rail infrastructure contractor on a national electrified network did overhead wire measurement by hand, mast by mast, with the line closed to traffic. Brainy Neurals built a vehicle mounted system that uses computer vision & depth sensing to read every mast. Everything runs on board at working speed, so crews see each reading at the mast instead of walking with a gauge. The contractor reports 10 to 20 times more track covered per shift, measured across its first year, & the line stays open throughout.

  • #OverheadWireMeasurement
  • #ComputerVision
  • #EdgeAI
  • #RailElectrification
  • #DepthSensing
  • #RailMaintenance

10 to 20×

More track per shift

5

Readings at every mast

Line open

No closure while measuring

Prasiddh Mori

By Prasiddh Mori , AI Engineer

Published August 2026 · Updated October 2026

Tell us about your project
Check AI readiness

What did the engagement cover?

Field Detail
Client A rail infrastructure contractor operating on a national network
Sector Rail electrification maintenance
Problem Wire geometry checked by hand, mast by mast
What we built Vehicle mounted vision system reading five parameters live
Where it runs On the vehicle, while it moves
Coverage change 10 to 20 times more track per shift
Status In production

Why did manual wire surveys keep failing?

Manual surveys kept failing because overhead wire measurement relied on people holding gauges. The wire above an electrified track weaves from side to side on purpose, & engineers call that weave stagger.

Stagger stops the pantograph, the arm that collects power, from wearing a groove in one place. Every weave has to stay inside tolerance, & only a person standing under the wire with a gauge could confirm it.

Stagger is one of the few things on a railway built out of straight on purpose.

Measuring by eye & hand is the kind of job that computer vision development took over in other fields years ago.

  • Two people walk the track with a laser gauge, measuring one mast at a time.
  • The line has to be closed first, so surveys wait for a time window that suits operations.
  • Readings go into a notebook & get typed up later, which lets a transposed number survive all the way to audit.
  • Two crews measuring the same mast rarely agree, since a person holds the gauge on ballast.

Manual overhead line inspection only checks a sample each cycle, so a wire can drift out of place until a pantograph finds it.

Read left to right along a single track, with four break markers hanging below the line. Flow diagram of a manual overhead wire survey with four points where the process breaks down. Crew walks the track Line closed first Gauge held by hand One mast measured Written in a notebook Typed up later Sample only Fault found next cycle Waits for a window Two crews disagree Numbers transposed Thousands unchecked Read top to bottom along a single track, with four break markers beside it. Flow diagram of a manual overhead wire survey with four points where the process breaks down. Crew walks the track Line closed first Gauge held by hand One mast measured Written in a notebook Typed up later Sample only Fault found next cycle Waits for a window Two crews disagree Numbers transposed Thousands unchecked

Every manual survey has four failure points, & none of them is the measuring itself.

What do teams usually try first?

Teams usually reach for one of four alternatives first, & every operator we’ve met had tried at least one of them.

The usual approach Why it appeals Where it stops
Better handheld gauges Cheap, & crews already know them One mast at a time, behind a line closure
Laser scanning from a survey car Precise, & proven on track geometry The car costs so much that it rarely visits
Record now, process later Simple to fit, with no compute on board Faults surface days after the vehicle has left
Manual review of roof camera footage Uses cameras already fitted Someone still watches every hour of it

How does overhead wire measurement work on board?

Measuring on board starts with a camera aimed where the pantograph meets the wire. Brainy Neurals built this vehicle mounted computer vision system for a rail infrastructure contractor on a national network.

A camera on its own gives you a picture rather than a distance, so we paired it with depth sensing. That makes this a sensor fusion problem before it’s a vision one.

Each pass returns five numbers, which are contact wire height, stagger, mast offset, gradient & change in gradient.

The vehicle caused most of the trouble, because it rolls & bounces between frames. On a curve it leans too, which moves the camera while the wire stays exactly where it was. We run motion correction for all of that before measuring anything at all.

Everything runs on the vehicle while it moves, with no upload & no queue behind it. Each located reading is written before the next mast arrives. Crews see the number while they’re still standing beside the mast that produced it.

Read bottom to top through three stacked bands: inputs, on-vehicle processing, outputs. Architecture diagram showing camera & depth inputs feeding on-vehicle processing & two outputs. Runs on the vehicle Camera looking up Depth sensing Satellite position Vehicle motion Find wire & mast Solve geometry Correct for motion Five measurements Located record Read bottom to top through three stacked bands: inputs, on-vehicle processing, outputs. Architecture diagram showing camera & depth inputs feeding on-vehicle processing & two outputs. Five measurements Located record Correct for motion Solve geometry Find wire & mast Runs on the vehicle Camera looking up Depth sensing Satellite position Vehicle motion

Everything inside the dashed box happens on the vehicle while it’s moving.

The technology stack we used

The technology stack uses parts that aren’t exotic, & the work went into how they’re arranged. Much of that effort went into making on-device inference keep pace with a vehicle moving at line speed.

Layer What we used Why What we ruled out
Capture High frame rate camera aimed up at the wire Freezes the wire at line speed Consumer cameras that smear
Depth Depth sensing across the same view Gives the distance a camera cannot Lidar, on cost & weight
Detection Custom models trained on overhead rail scenes Stock models never saw a contact wire Road scene detectors
Measurement Geometry engine turning pixels & depth into millimetres Where the accuracy lives Calibration that assumes a still vehicle
Motion Correction for roll & pitch, with lean handled on curves The camera moves while the wire stays put Ignoring it, which we tried
Location Satellite positioning on every reading Engineers need the mast, not the average Chainage typed by hand
Compute On board unit running the pipeline live Skips the upload & the queue Cloud, & record now, process later

What happens on one pass?

One pass runs six steps between the vehicle reaching a mast & the record being saved, all while it keeps moving.

  1. The vehicle runs the route at working speed, so no crew needs a possession or a window.
  2. The camera looks up & captures the wire & mast fast enough that nothing smears.
  3. Depth sensing measures the distance to that same scene at the same instant, giving two views of one moment.
  4. The models locate the wire & its contact point, then the mast. That detection work is the easier half of the job.
  5. The geometry engine turns those positions into height, stagger, mast offset, gradient & change in gradient.
  6. The system subtracts the vehicle’s own motion & attaches a satellite fix. Then it writes the record to structured storage.

By then the next mast is usually already in frame, & the cycle starts again.

Read left to right as one chain, numbered one to six to match the six steps above it. Six-step chain showing one overhead wire measurement travelling from camera to saved record. 1 Vehicle passes mast 2 Camera captures frame 3 Depth measured 4 Wire & mast found 5 Geometry solved 6 Record written Read top to bottom as one chain, numbered one to six to match the six steps above it. Six-step chain showing one overhead wire measurement travelling from camera to saved record. 1 Vehicle passes mast 2 Camera captures frame 3 Depth measured 4 Wire & mast found 5 Geometry solved 6 Record written

One pass takes six steps, & the vehicle never slows down for any of them.

What nearly stopped the project?

Three problems nearly stopped the project & took up most of its time. Two of them were never vision problems at all.

  • The vehicle wouldn’t hold still, & every roll or bounce moved the camera between frames. Lean on every curve made the drift even worse. Early readings drifted with the track rather than the wire, & separating the two took weeks.
  • Sunlight was the second problem, because a copper wire against a bright sky nearly disappears for part of the day. At other hours the same wire acts like a mirror. The same route looked like two different problems at nine in the morning & four in the afternoon.
  • Compute, power, mounting & heat all had to fit on the vehicle. It was never designed to carry any of them. So we brought in specialist engineers who had done embedded work before, rather than learning it slowly.

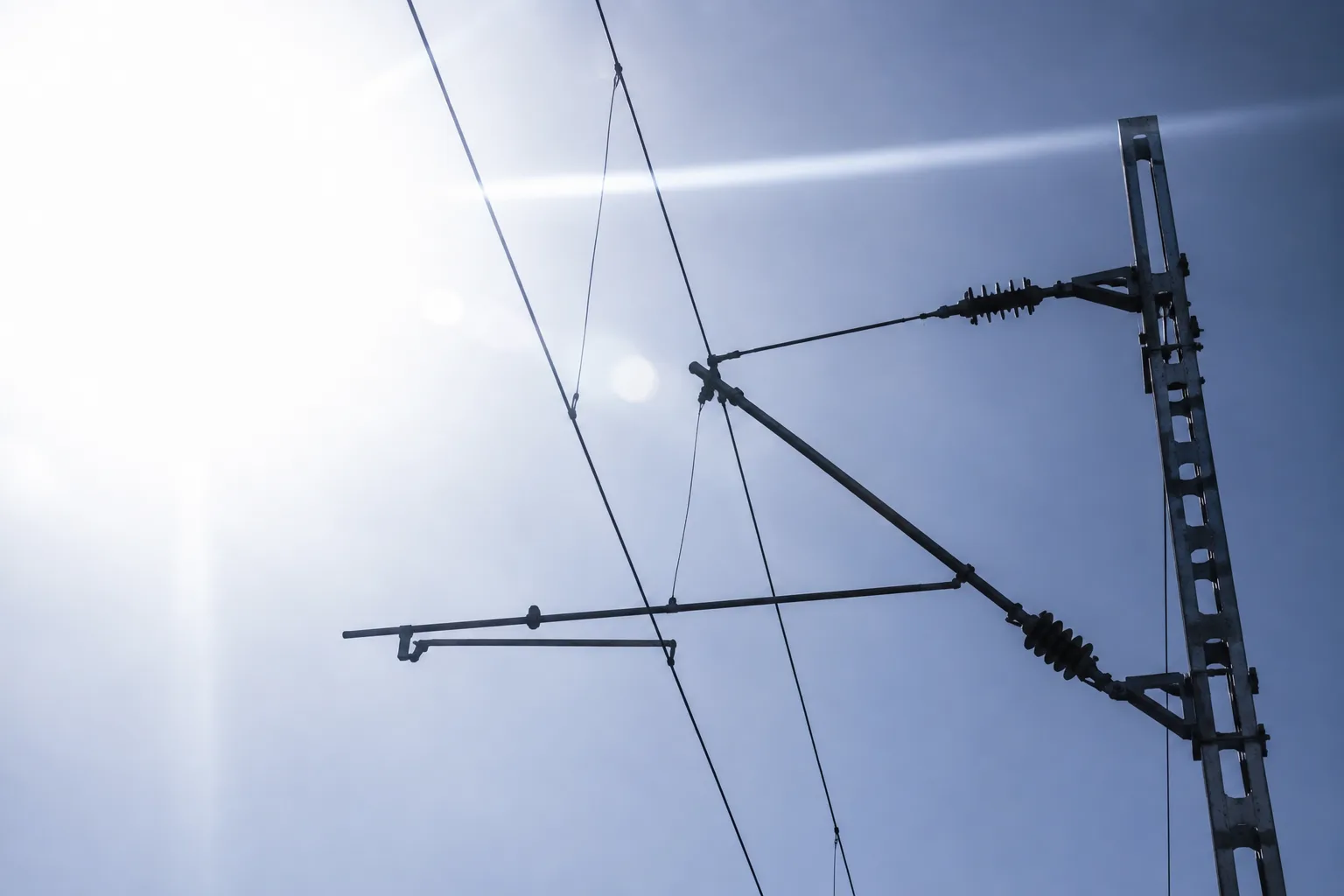

Contact wire & mast silhouetted against harsh backlight & glare, a tough view for vehicle mounted computer vision
At some hours of the day, glare makes the contact wire almost impossible to see.

How we fixed each problem

We fixed the problems one at a time, & each fix took far longer to find than it takes to read about.

The problem What we did How we knew it worked
The camera moved with the vehicle Measured that movement & subtracted it before solving geometry Readings stopped changing when we passed a mast twice
Light changed through the day Trained on the same routes at different hours, & adapted exposure live Morning & afternoon runs started agreeing
The kit had to survive the vehicle One on board unit, sized for the power & heat available It ran a full shift untouched
A number with no place is useless A satellite fix on every reading, at high frequency Engineers drove straight to flagged masts

We proved each fix on a short stretch of track first, the way any AI proof of concept should run. Order mattered too, because motion had to be solved before the light problem made sense.

Read from the left column to the right column, as four horizontal pairs. Four problems paired with the four fixes that resolved them, shown side by side. WHAT BROKE WHAT WE DID Camera moved Subtract vehicle motion Light changed hourly Train across the day Kit did not fit One on board unit Numbers had no place Satellite fix each reading Read from the left column to the right column, as four pairs stacked top to bottom. Four problems paired with the four fixes that resolved them. WHAT BROKE WHAT WE DID Camera moved Subtract vehicle motion Light changed hourly Train across the day Kit did not fit One on board unit Numbers had no place Satellite fix each reading

Four problems sit beside the four fixes, in the order they had to be solved.

What changed after go-live?

The results after go-live are operational, because model level figures stay with the contractor. Here is what we can report & what we can’t.

Measure Before After
Track covered in a shift One crew on foot, covering a fixed number of masts 10 to 20 times more, from a moving vehicle
Line availability Closed or under possession Open
Parameters per mast Two, sometimes three Five, every time
Where a fault shows On a form, days later On screen, at the mast
Finding that mast again Chainage & a description A satellite fix on every reading
What an engineer visits Every mast in the section Only the flagged ones

The coverage figure is the contractor’s own, measured across its first year, & we haven’t audited it.

Read as two columns, left to right, across four rows. Before & after comparison of overhead wire survey coverage, availability & parameters captured. BEFORE AFTER Line closed Line open One mast at a time 10 to 20 times more Two parameters Five parameters Fault found days later Fault shown at the mast Read as two columns, left to right, across four rows. Before & after comparison of overhead wire survey coverage, availability & parameters captured. BEFORE AFTER Line closed Line open One mast at a time 10 to 20 times more Two parameters Five parameters Fault found days later Fault shown at the mast

The right-hand column shows what changed, & keeping the line open is what paid for it.

Still measuring by hand behind a closure?

Tell us what your crews measure today & which vehicle could carry the kit. If you’d rather start smaller, first check how ready your team & your data are for an AI build.

Scope your project with us
Take AI assessment

What is running today?

Today the overhead wire measurement system runs in production on live routes, rather than as a pilot. It works on the contractor’s own vehicle as part of the normal maintenance cycle. Crews now use the output instead of checking it against a gauge, & that change took about a season.

Data builds up by route & by pass, so the same mast can be compared across cycles. That comparison was never part of the original ask. The maintenance team now names it as the feature they value most, & the pattern keeps showing up across our rail & logistics work.

Rail electrification maintenance worker standing beside a track vehicle in early morning light
Crews still walk the track, but now they stop only at the masts the system flagged.

What we would do differently

We’d change five things, listed here in the order we wish we’d known them.

  • Solve the vehicle’s motion before anything else. We spent a month tuning detection when the readings were wrong for a purely mechanical reason.
  • Collect data in glaring noon & low winter sun first, because they teach more than a week of easy light.
  • Agree on the mounting before writing any code, because bracket design decided more than any model change did.
  • Give the crew a screen from day one. They caught errors in week one that we wouldn’t have found until month three.
  • Agree on a definition of correct before building, because two teams can measure the same wire & still disagree.

In our experience, that last step is the one teams tend to skip.

Where else does this pattern apply?

The same pattern shows up wherever something moves & has to be measured against a tolerance. Today a person usually does that job standing still.

Industry The same problem, renamed What transfers
Manufacturing Parts checked against a drawing on a moving line Depth plus vision, plus motion correction
Civil infrastructure Bridge & gantry clearance surveyed by closing a road The whole vehicle mounted approach
Energy Power line height & clearance walked by a team Location tagging & the flagging logic
Warehousing Racking & dock clearance checked on schedule On vehicle processing, on a forklift
Mining Haul road & tunnel profile measured on foot All of it, plus dust

In each of these fields the camera is the easy piece. Convincing the people who sign off that a moving measurement can be trusted takes far longer.
